An outdoor robot may need to know where it is, which way it faces, or both. These are separate requirements. A single-antenna RTK GNSS module can provide a precise global position when suitable correction data is available. A dual-antenna system can also determine heading from two antennas mounted on the robot.
The right choice depends on how your robot moves and whether its navigation system needs a heading reference while the platform is stopped or moving slowly.
When Is a Single Antenna Enough?
A single-antenna RTK module is a practical choice when global position is the main requirement. For example, an outdoor UGV may combine RTK position with wheel odometry and an IMU. A UAV may use RTK as a position reference for flight or mapping.
The LucSys G70 GNSS RTK module uses a compact, single-antenna architecture. It is suited to projects that need RTK positioning but do not require heading from a second GNSS antenna.
A single antenna does not directly measure the robot's orientation while it is stationary. If your system needs a heading estimate at standstill, account for that requirement when choosing the rest of the sensor system.
Why Use Two Antennas?
A dual-antenna receiver uses the relative positions of two antennas installed on the same platform to estimate heading. It can provide a GNSS-based heading reference without requiring the robot to move first.
This can be valuable for slow-moving UGVs, robotic mowers, agricultural vehicles and other platforms that must initialize or resume navigation from a stop. It can also provide an alternative heading reference where magnetic measurements are disturbed by motors, electrical equipment or nearby metal.
The LucSys G90 GNSS RTK module supports dual-antenna heading as well as RTK positioning. Its specified heading accuracy is 0.1° RMS with a 1 m antenna baseline. Antenna placement, baseline length and GNSS reception matter when designing the installation.
What Else Does an RTK Setup Need?
Centimeter-level RTK positioning requires suitable differential correction data, adequate satellite visibility and appropriate antenna installation. The correction data may come from a local RTK base station or a compatible network service, depending on the deployment.
The communication link should be planned as part of the system. Do not assume that the GNSS module itself includes a cellular modem or an RTK correction subscription. For a project involving a configurable base station, radio link or multiple rovers, read our guide to modular RTK GNSS for UAVs, UGVs and multi-robot systems.

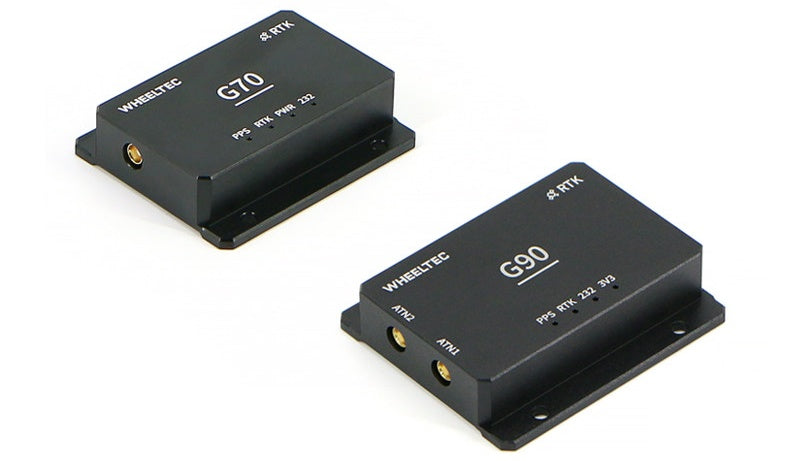

G70 or G90: A Quick Decision Guide
| Requirement | G70 | G90 |
|---|---|---|
| RTK positioning | Yes, with suitable corrections | Yes, with suitable corrections |
| GNSS antenna configuration | Single antenna | Dual antenna |
| GNSS-based heading at standstill | No dual-antenna heading | Supported with suitable installation and reception |
| Typical selection reason | Compact RTK position is the main goal | Both RTK position and GNSS heading are needed |
For either module, check the available mounting space, antenna layout, correction-data source, power supply and data interface before ordering. If the robot also uses an IMU and wheel odometry, plan how these measurements will be combined in its localization system.
