Balancing Cube

01 | Intelligent Auto-Swing Up

The B650 Edge-Balancing Cube is equipped with a high-speed flywheel and an intelligent auto-swing function. No manual positioning is required—the cube automatically senses its orientation and swings itself up into a balanced state, making your experiments more efficient.



          Note: This feature is exclusive to the B650; the B790 Point-Balancing version does not  support auto-swing.

02 | Flywheel Safety Auto-Stop

Safety is our top priority. The B650 features an Intelligent Emergency Brake. If the flywheel detects external contact or interference during operation, the motor responds instantly and shuts down to prevent damage or injury.

• Touch Protection: The motor stops immediately upon contact.

• Safety Warning: To ensure longevity and safety, please avoid touching the flywheel while it is spinning at high speeds.





          Note: The B790 Point-Balancing version does not include a flywheel by default.



03 | Comprehensive Mathematical Modeling

Mathematical modeling is the backbone of robotics. We provide a complete results handbook for the balancing cube’s mathematical model, helping you bridge the gap between theoretical physics and real-world hardware implementation.



04 | Wireless App Control & Rotation

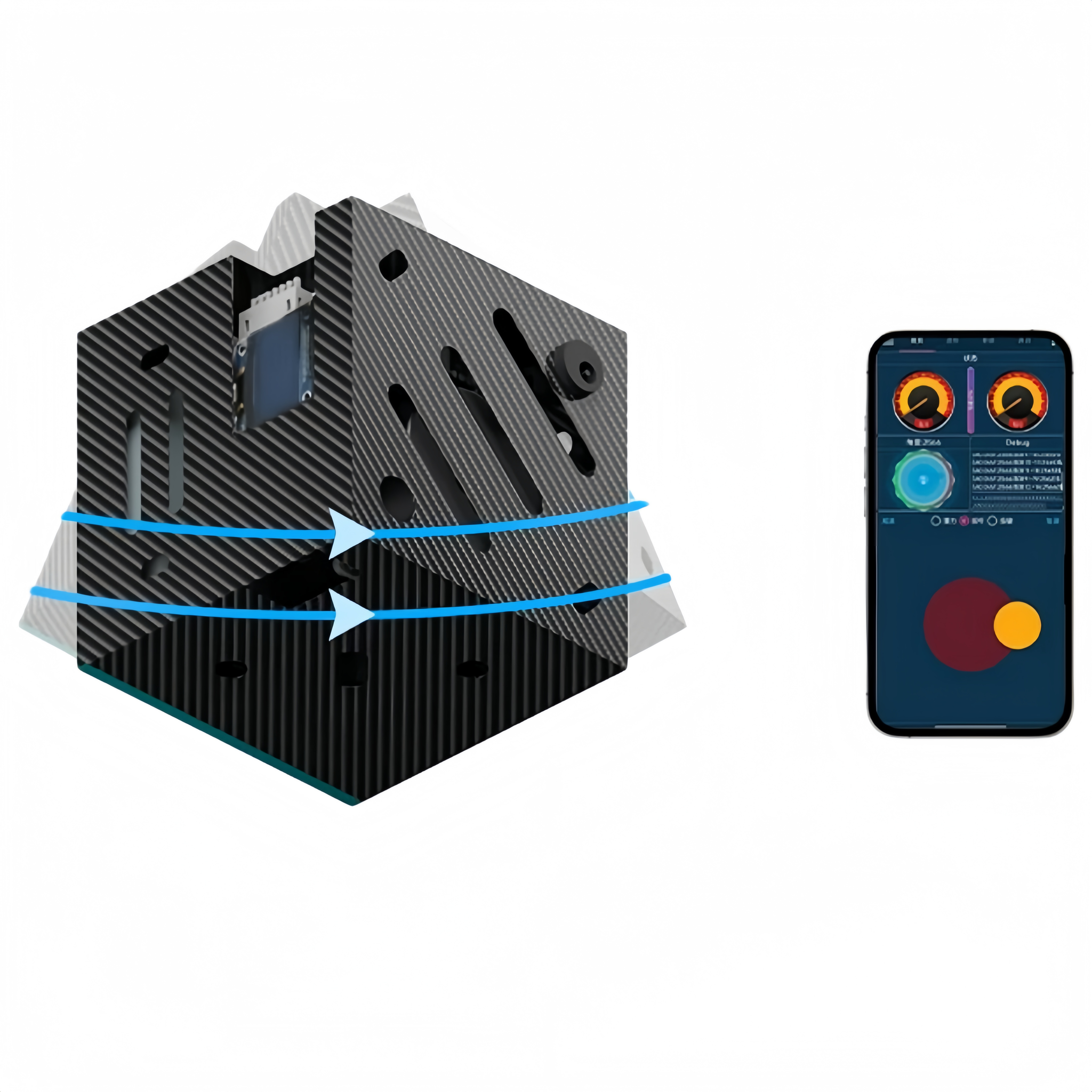

The B790 Point-Balancing Cube supports remote rotation via our dedicated mobile app. Connect via Bluetooth to command the cube to spin on its axis, adding a new dimension to your control experiments.

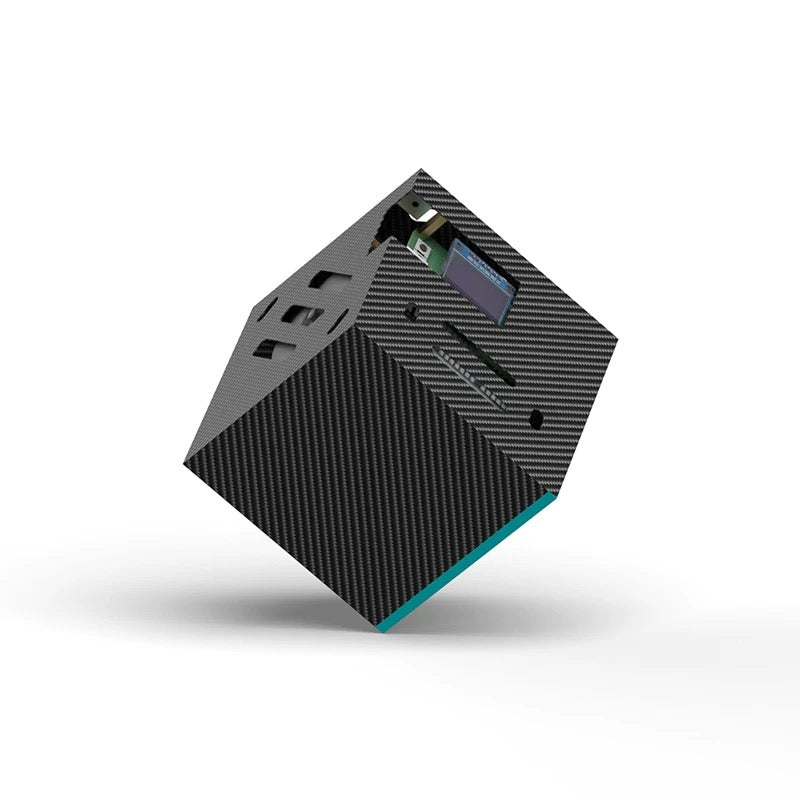

• Dual Mode: In addition to its signature single-point balance, the B790 also supports single-edge balancing.



05 | PID & LQR Control Source Code

Master modern control theory with access to both PID and LQR (Linear Quadratic Regulator) source codes. LQR is widely used in autonomous driving and advanced robotics to achieve optimal performance with efficient resource usage.

• B650: Includes Matlab Simulink simulation models for LQR control.

• B790: Provides full PID control source code.



06 | Multi-Library Support (Standard & HAL)

We provide STM32 underlying libraries in multiple versions. Choose between Standard Library or HAL Library to suit your development style. Both PID and LQR algorithms are provided as modular code for easy integration.



07 | One-Click Type-C Programming

Tired of tangling with DuPont wires, toggling BOOT0 switches, and hitting reset buttons? Our streamlined workflow allows you to download firmware and communicate via serial port using a single Type-C cable.

08 | Wireless Bluetooth Code Flashing

The standard Bluetooth module isn't just for remote control. Use our proprietary Bluetooth flashing software to upload code wirelessly in seconds—a massive convenience for developers testing code in the field.



09 | Advanced Data Visualization Software

Our powerful host computer software provides deep insights into your robot’s performance:

• Universal Connectivity: Supports Wired Serial, Bluetooth, and WiFi.

• Real-time Monitoring: View parameters as waveforms or raw data—perfect for analyzing PID loops and flight/balance dynamics.

• Data Export: Save data to tables or text files for offline analysis.

• Custom Debugging: Send any custom data packets to the cube for faster troubleshooting.

• Ready-to-Use: Includes original sample routines and documentation.



10 | Integrated ICM20948 9-Axis Sensor

Equipped with the high-precision ICM20948 9-axis attitude sensor. This module includes a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer, offering stability and performance that far exceeds the standard MPU6050.



11 | Professional App Support (iOS & Android)

Every unit comes standard with a Bluetooth module and a feature-rich App.

• Real-time Tuning: Adjust parameters wirelessly while the cube is running.

• Motion Control: Supports gravity-sensing control and real-time waveform display for on-the-go analysis.
