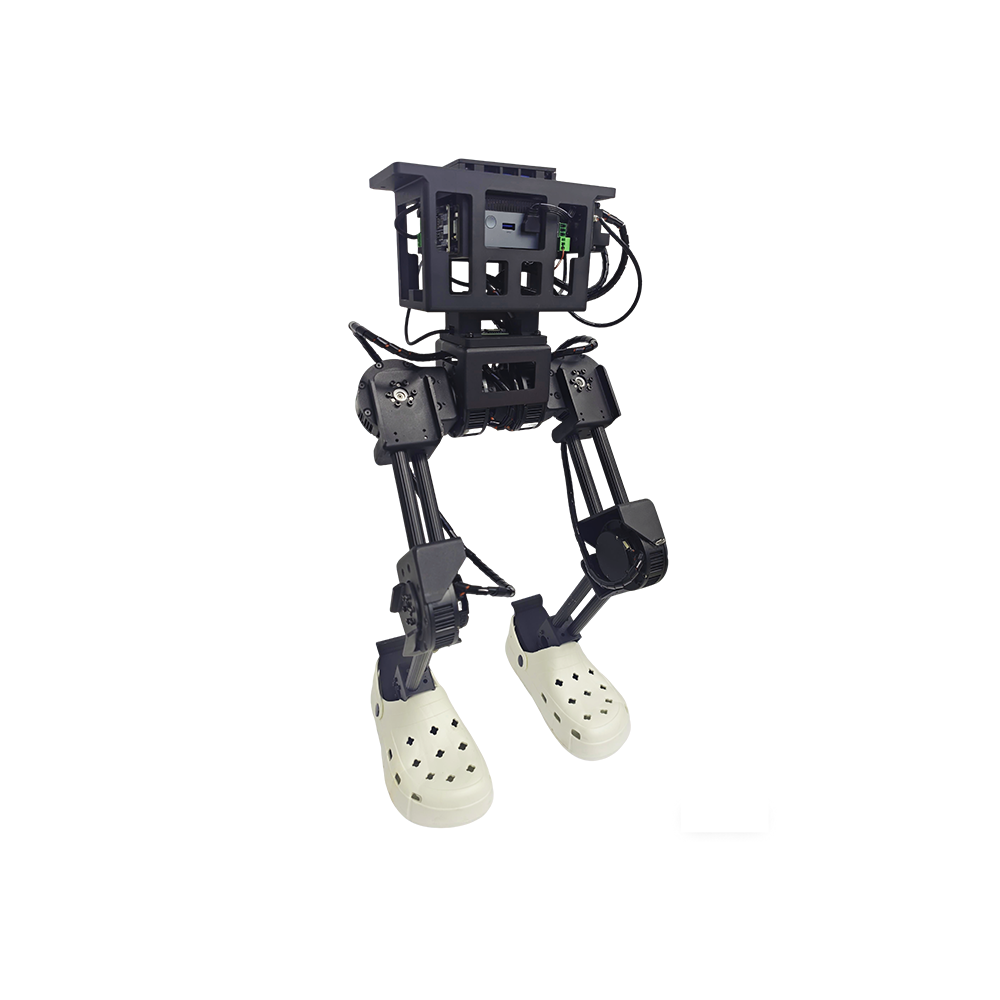

LSF830 Biped Humanoid Robot Development Platform

The LSF830 is a biped humanoid robot development platform for reinforcement learning, Sim2Real research, humanoid locomotion, motion-control algorithm development, robotics education, and AI robotics experimentation. The platform uses an NVIDIA Jetson Orin NX (8 GB) compute platform and combines simulation resources, open development resources, dual-encoder joint modules, and real-robot deployment workflows in a single research platform.

• Designed for reinforcement learning and biped locomotion research
• Complete Sim2Real workflow from simulation training to physical robot deployment
• NVIDIA Jetson Orin NX (8 GB) onboard computing platform
• 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
• Integrated high-performance joint modules with dual encoder feedback
• Open development resources covering hardware assembly, environment setup, algorithm concepts, simulation training, and real-robot deployment
• Supports secondary development, reward-function tuning, control-parameter adjustment, and sensor integration
• Suitable for university laboratories, humanoid robotics courses, AI research, and robot control experiments

Product Overview

The LSF830 provides a practical hardware-and-software platform for learning and developing biped humanoid robot control. Instead of requiring users to build a complete humanoid robot, simulation environment, joint-control system, and deployment workflow from the ground up, the platform combines these elements into a development environment intended for education and research.

Users can train locomotion policies in simulation, evaluate them under different environments and disturbances, tune reward functions and control parameters, and then deploy trained strategies to the physical robot. This provides a direct path from reinforcement-learning experiments to real-robot validation.

The platform also provides development documentation and example resources covering hardware assembly, environment configuration, robot-control concepts, simulation training, and physical deployment, helping users focus more quickly on control algorithms and robotics research.

Reinforcement Learning & Sim2Real

Simulation-Based Locomotion Training

The LSF830 supports reinforcement-learning-based motion-policy development in simulation. Users can build training environments, define rewards, introduce disturbances, and train locomotion policies before deploying them to the physical robot.

Domain Randomization and Disturbance Testing

The development resources support configurable simulation conditions such as model-parameter variation and noise, allowing researchers to improve policy robustness before Sim2Real deployment. External push disturbances and varied terrain conditions can also be introduced during training.

Simulation → Training → Real Robot Deployment

The intended workflow connects simulation environment setup, reinforcement-learning training, policy evaluation, and physical robot deployment. This allows algorithms to be tested and iterated in simulation before they are validated on the actual hardware.

Onboard Computing Platform

Joint & Motion-Control Architecture

Integrated Joint Modules with Dual Encoders

The robot uses integrated high-performance joint modules with dual encoder feedback. The joint architecture is designed to avoid repeated zero-position calibration during normal startup, reducing setup time for experiments.

Open Control Development

Users can modify reward functions, motion strategies, control parameters, simulation settings, and supported sensor integrations. This allows the platform to be used for custom locomotion research rather than only fixed demonstration routines.

Expandable Research Platform

The available development interfaces are intended to support additional sensors and higher-level algorithms, including visual navigation, learning-based control, and other custom robotics experiments.

Teaching & Development Resources

• Hardware assembly and robot-structure learning materials
• Software and simulation environment configuration guidance
• Robot-control and reinforcement-learning concept materials
• Simulation training examples and development workflow guidance
• Real-robot deployment resources for Sim2Real experiments
• Source code and documentation for supported secondary development workflows

These resources are intended to reduce the amount of time users spend rebuilding the basic robot software stack and to make the platform suitable for both structured teaching and open-ended research.

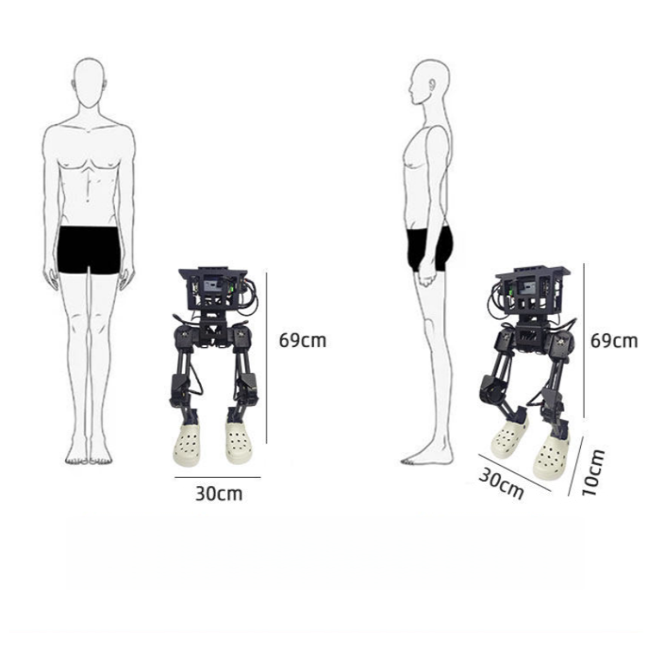

Platform Specifications

Battery Notice

Due to international shipping regulations, the LSF830 is shipped without batteries. Customers must prepare a compatible battery separately before operation.

Applications

Humanoid Locomotion & Reinforcement Learning

Use the platform to study biped gait generation, reinforcement-learning policies, disturbance recovery, terrain adaptation, reward design, and Sim2Real transfer.

University Teaching & Robotics Laboratories

The combination of hardware, simulation, source code, and structured learning materials makes the platform suitable for humanoid robotics courses, AI robotics projects, and university laboratory teaching.

AI Robotics & Advanced Algorithm Research

The Jetson-based compute platform can support higher-level workloads such as deep learning, visual SLAM, and LLM deployment alongside robot-control research.
