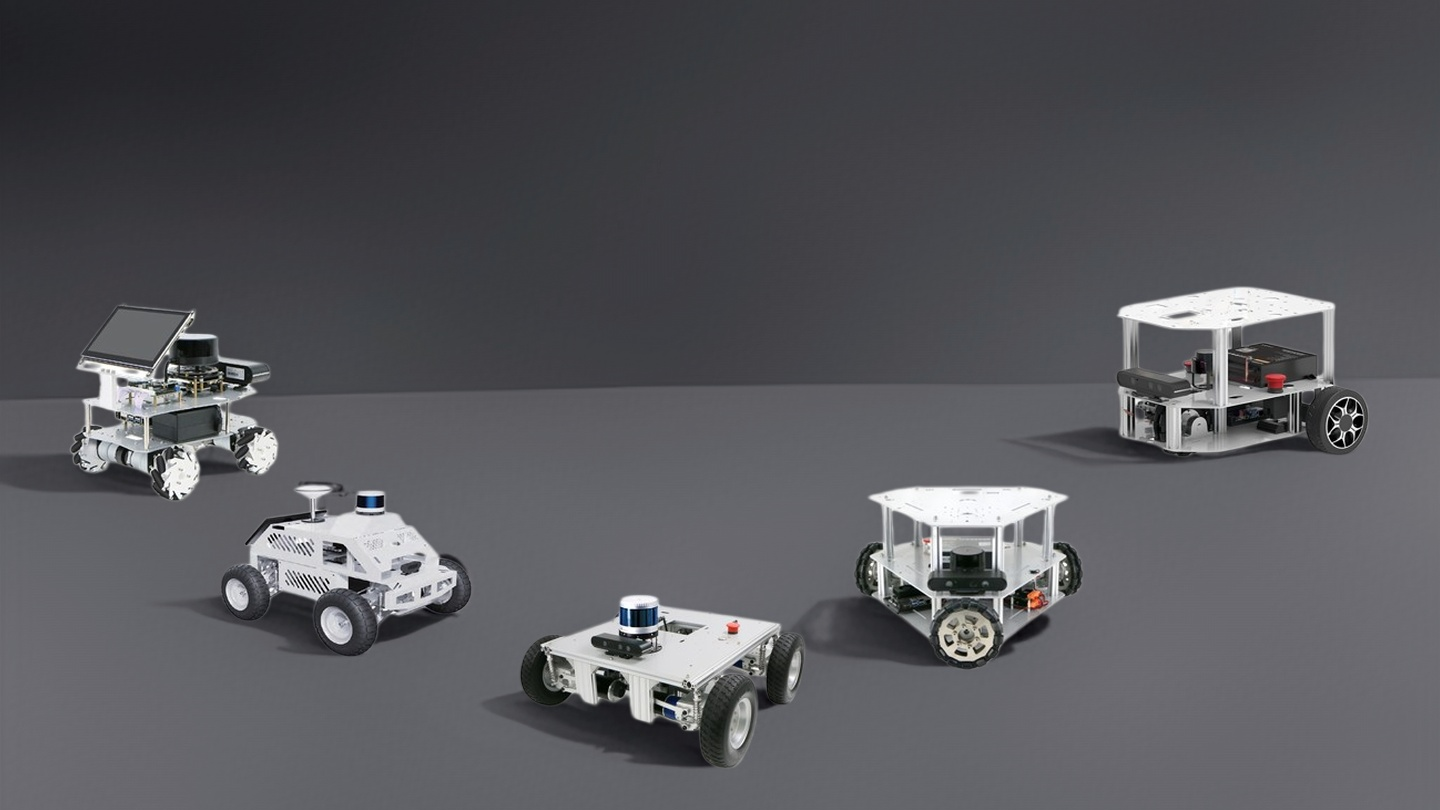

How to Choose the Right Mobile Robot Base?

Choosing the right mobile robot base is an important hardware decision for robotics research. The drive architecture affects maneuverability, payload, terrain capability, motion constraints, sensor integration and the types of algorithms that can be developed and validated on the platform.

For ROS and ROS 2 research, common mobile robot architectures include 2WD differential drive, 4WD, Mecanum, omnidirectional and Ackermann steering. All of these architectures can support autonomous navigation, but they are suited to different research objectives and operating environments.

This guide compares the main drive types for SLAM, Nav2, autonomous navigation, mobile manipulation, autonomous-driving research and other robotics applications.

You can also explore the full range of LucSys mobile robot research platforms.

1. 2WD Differential-Drive Robots

A 2WD differential-drive robot typically uses two powered wheels with passive support wheels or casters. Steering is achieved by controlling the left and right drive wheels independently.

Its compact mechanical structure and straightforward kinematic model make it useful for indoor robot development, teaching, navigation-algorithm validation and other applications where high payload capacity is not the primary requirement.

• Advantages: compact structure, simple kinematics, zero-radius turning and relatively straightforward wheel-odometry modeling.
• Limitations: lower traction, payload capacity and mechanical expansion space compared with larger 4WD platforms.
• Typical applications: ROS 2 development, indoor SLAM, Nav2, localization, path planning and robotics education.

2. 4WD Mobile Robot Platforms

4WD mobile robots use four driven wheels to provide greater traction, payload capacity and mechanical stability. They are widely used as general-purpose research platforms when a project requires additional onboard computers, batteries, LiDAR, cameras, IMUs, RTK modules or other research hardware.

A 4WD platform can support the same core ROS 2 navigation workflows as smaller mobile robots, including mapping, localization, Nav2, path planning and autonomous navigation, while providing more room for higher-performance computing and multi-sensor systems.

• Advantages: higher traction, larger payload capacity, greater expansion space and better suitability for multi-sensor research.
• Limitations: larger size and weight, with wheel-odometry accuracy depending more strongly on surface conditions and chassis behavior.
• Typical applications: SLAM, autonomous navigation, outdoor robotics, 3D perception, sensor fusion and higher-payload research systems.

For higher-payload ROS and multi-sensor research, see the LSR200 Industrial 4WD Research Platform or browse the LucSys Research Platforms for additional 4WD configurations.

3. Mecanum Wheel Robots

Mecanum robots use wheels with angled rollers, allowing the platform to move forward, backward, sideways, diagonally and rotate without first changing its orientation.

This additional mobility is useful in confined indoor environments, mobile manipulation and research where the robot must reposition precisely without conventional turning maneuvers.

• Advantages: lateral motion, high maneuverability and flexible planar movement.
• Limitations: lower mechanical efficiency than conventional wheels and greater sensitivity to uneven terrain.
• Typical applications: mobile manipulation, indoor navigation, multidirectional motion planning and human–robot interaction.

For omnidirectional ROS research, see the LSR550 MEC Mecanum Research Robot Platform.

4. Omni-Directional Robots

Omni-wheel robots also provide holonomic motion. Depending on the wheel arrangement, three-wheel or four-wheel configurations can generate motion in multiple directions by combining the velocity vectors of the individual wheels.

• Advantages: compact multidirectional motion and smooth directional transitions.
• Limitations: generally better suited to relatively smooth indoor surfaces.
• Typical applications: robotics education, indoor research, lightweight service robots and omnidirectional motion-control experiments.

5. Ackermann-Steering Robots

Ackermann steering uses vehicle-like steering geometry. Instead of rotating in place, the robot follows a finite turning radius, producing motion constraints similar to conventional road vehicles.

This makes Ackermann platforms particularly useful for research involving vehicle dynamics, trajectory tracking, non-holonomic planning and autonomous-driving algorithms.

• Advantages: vehicle-like steering behavior, efficient forward motion and suitability for trajectory-control research.
• Limitations: cannot rotate in place and requires planning that considers steering geometry and minimum turning radius.
• Typical applications: autonomous driving, trajectory tracking, outdoor navigation and vehicle-control research.

For a compact Ackermann ROS 2 research platform, see the LSR550 ACM Ackermann UGV.

6. For Complete Autonomous-Driving Research

For autonomous-driving research, chassis geometry is only one part of the system. Advanced projects may also require multi-line LiDAR, GNSS RTK, IMU, depth vision, radar, high-performance onboard computing and an integrated autonomous-driving software stack.

The LSR200Auto ROS 2 Autoware Autonomous Driving Platform is designed for this type of system-level research. It is available in both Ackermann and 4WD configurations and supports Autoware-based workflows for localization, mapping, perception, planning and vehicle control.

If your research focuses mainly on chassis control and vehicle-like motion, an Ackermann research robot may be sufficient. If the objective is to develop and validate a complete autonomous-driving pipeline, an integrated Autoware platform provides a more complete perception-to-control development environment.

Mobile Robot Drive Comparison

Which Robot Base Is Best for ROS 2, SLAM and Nav2?

ROS 2 navigation and SLAM are not limited to one chassis type. 2WD, 4WD, Mecanum, omni and Ackermann platforms can all be used for autonomous navigation when the motion model, odometry and navigation configuration are correctly matched to the robot.

A compact 2WD platform provides a simple starting point for indoor algorithm development. A 4WD platform is often more attractive when the system must carry additional sensors, computing hardware or payloads, or when the research environment requires more traction and mechanical capacity.

Mecanum and omni platforms add lateral motion for research that requires omnidirectional mobility, while Ackermann platforms are particularly relevant when vehicle-like steering constraints are part of the research problem.

Which Platform Should You Choose?

For General ROS 2 Navigation and Multi-Sensor Research

A 4WD research platform is a versatile option when the project combines navigation, perception, onboard computing and multiple sensors. A smaller 2WD platform remains useful when compact size and a simple motion model are more important.

For Omnidirectional Indoor Mobility

Choose a Mecanum or omni-directional platform when lateral movement and precise multidirectional positioning are important.

For Vehicle-Like Motion Research

Choose an Ackermann platform when steering geometry, trajectory tracking and non-holonomic planning are central research topics.

For Full Autoware Autonomous-Driving Development

Choose an integrated autonomous-driving platform such as the LSR200Auto when the project requires LiDAR, RTK GNSS, IMU, camera and radar perception together with an Autoware localization, mapping, planning and control workflow.

Other Factors to Consider

• Payload: include LiDAR, cameras, onboard computers, IMUs, RTK modules, robotic arms and additional experimental hardware.
• Onboard computing: select Raspberry Pi or NVIDIA Jetson according to the navigation, perception and AI workload.
• Sensor integration: consider the required LiDAR, camera, IMU, RTK, radar and other sensing interfaces.
• Operating environment: indoor floor conditions, outdoor terrain, ground clearance, wheel type and suspension can affect platform selection.
• Motion model: differential, omnidirectional and Ackermann platforms require different planning and control strategies.
• Development resources: ROS / ROS 2 support, URDF, source code and tutorials can significantly reduce system-integration time.

Quick Selection Summary

• 2WD Differential: compact platform for indoor navigation, education and algorithm development.
• 4WD: versatile choice for ROS navigation, multi-sensor research, higher payloads and outdoor robotics.
• Mecanum: suited to research requiring lateral and omnidirectional movement.
• Omni: lightweight holonomic mobility for smooth indoor environments.
• Ackermann: vehicle-like motion for trajectory-control and autonomous-driving research.
• LSR200Auto: integrated Autoware platform for complete autonomous-driving research workflows.
