Product Overview

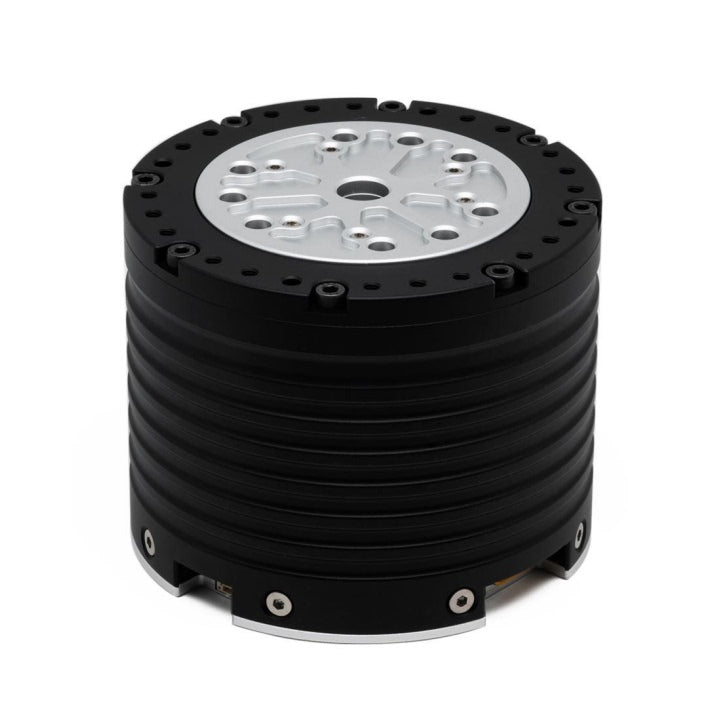

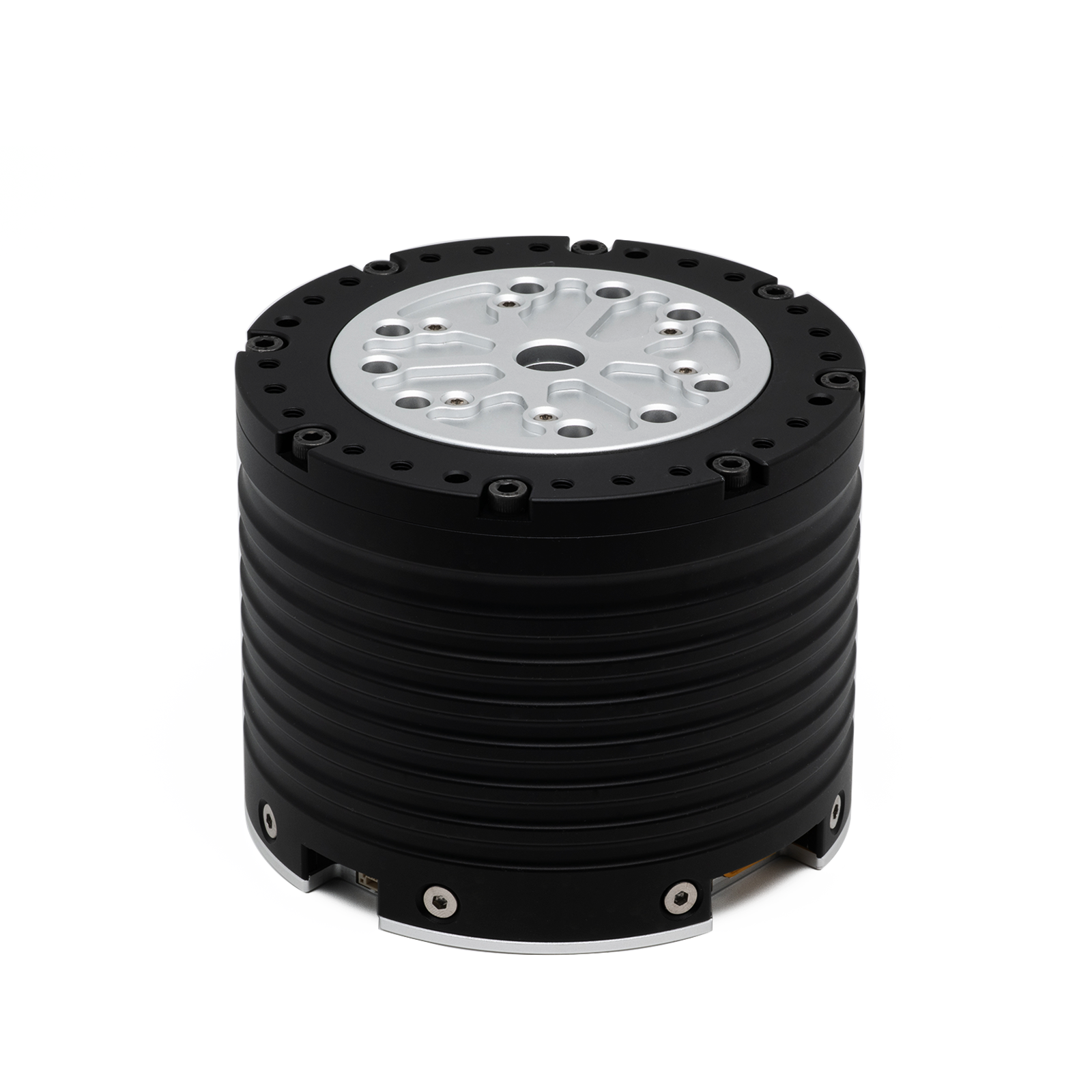

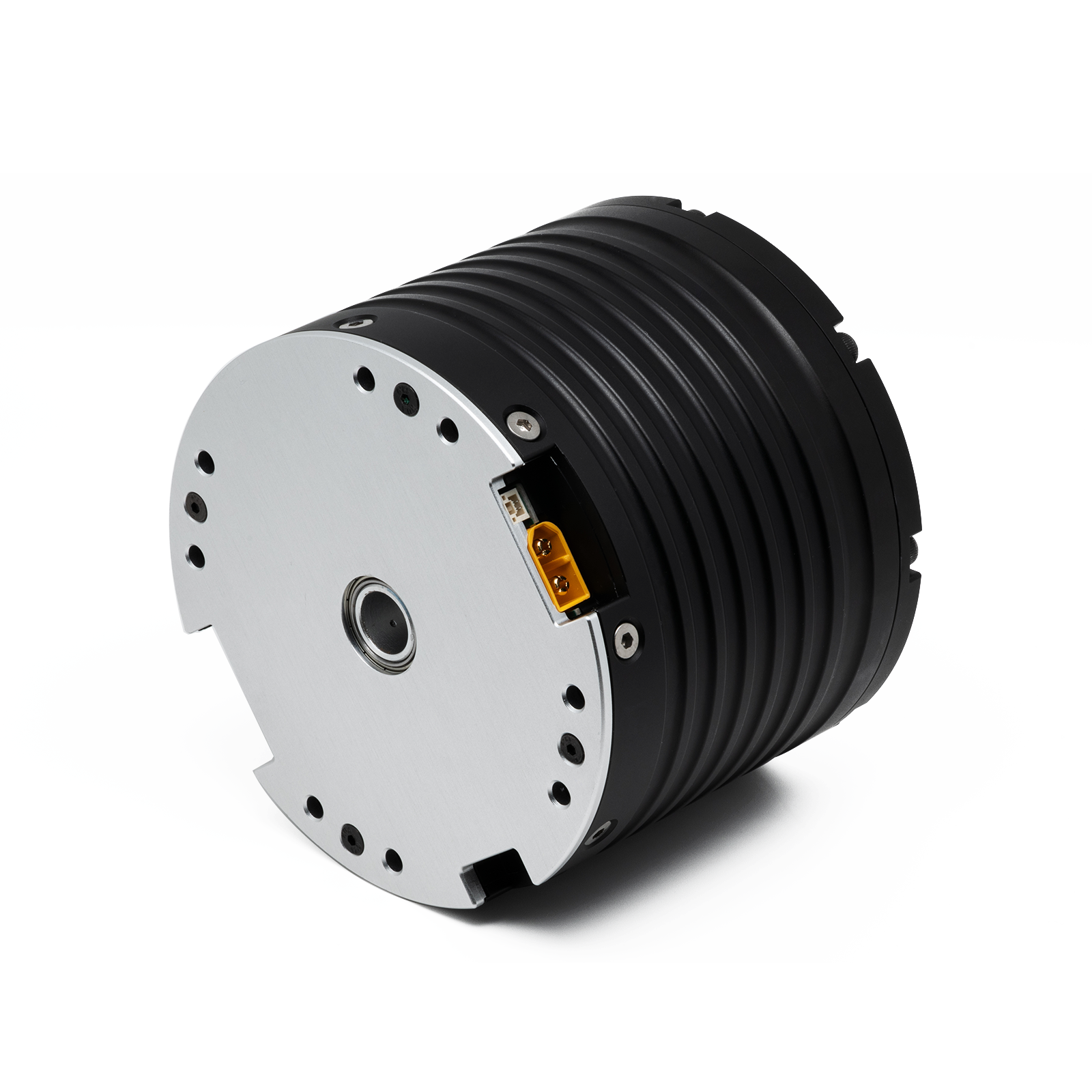

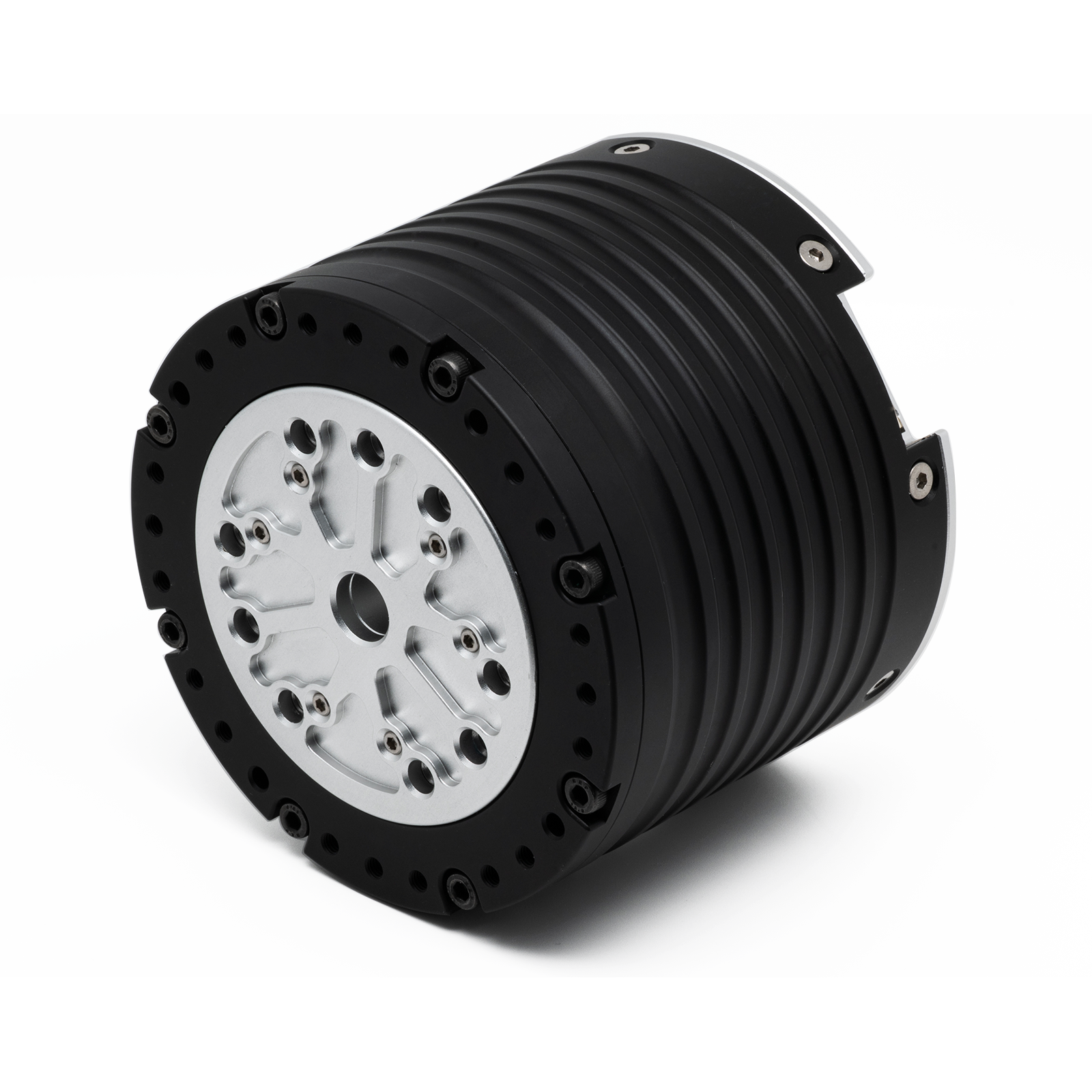

This integrated servo motor seamlessly merges a high-performance brushless motor with an advanced servo driver. It is engineered specifically for next-generation humanoid robot joints, high-precision collaborative robots, exoskeleton devices, and heavy-duty AGVs/AMRs.









Parameter Category

Parameter Item

Value / Description

Motor Parameters

Rated Voltage

48V

Rated Phase/Power Current

44.5A / 27.5A

Peak Phase/Power Current

165.0A / 48.9A

Rated Torque

100.0 Nm

Peak Torque

400.0 Nm

Rated Speed

100 rpm

Max No-load Speed

120 rpm

Motor Characteristics

Number of Slots

36

Pole Pairs

16

Reduction Ratio

1:22

Phase Inductance

38 uH (@25°C)

Phase Resistance

81 mΩ (@25°C)

Structure & Weight

Hollow Bore Size

12 mm

Outer Diameter

110 mm

Height

89.9 mm

Motor Weight

Approx. 2700 g

Encoder

Encoder Bits

17-bit

Encoder Accuracy

±0.03°

Encoder Quantity

2

Communication

Control Interface

CAN @ 5 Mbps (Max)

Tuning Interface

UART @ 921600 bps

Control & Protection

Control Mode

• MIT Mode

• Speed Mode

• Position Mode

• Force/Position Hybrid Control Mode

Protection

• Driver Over-temperature Protection: Threshold: 120°C. Motor will exit "Enable Mode" upon over-temperature.

• Motor Over-temperature Protection: User-configurable, recommended not to exceed 100°C (setting above 110°C may burn out the coils). Motor will exit "Enable Mode" upon over-temperature.

• Motor Over-voltage Protection: User-configurable, recommended not to exceed 65V. Will exit "Enable Mode" upon over-voltage.

• Communication Loss Protection: Will automatically exit "Enable Mode" if no CAN command is received within the configured period.

• Motor Over-current Protection: User-configurable, recommended not to exceed 0.98. Will exit "Enable Mode" upon over-current.

• Motor Under-voltage Protection: Will exit "Enable Mode" if supply voltage falls below the set value. Supply voltage must not be lower than 20V.



Key Features

•Dual Encoder System: Absolute Position Protection Against Power Loss Equipped with 17-bit high-precision dual encoders (accuracy up to ±0.03°), enabling real-time tracking of the single-turn absolute position of the output shaft. Featuring robust power-off position memory, the system retains its absolute position even during unexpected power outages or shutdowns. Upon powering back up, there is no need for time-consuming homing routines, significantly boosting operational efficiency and safety in automated systems.
•Ultra-Compact Integrated Structure with High Torque Density Output Adopting an all-in-one motor and driver design, the actuator features a compact outer diameter of just 110 mm and a 12 mm hollow bore design. Operating on a 48V low-voltage DC supply, it delivers a powerful rated torque of 100.0 Nm and an astonishing peak torque of 400.0 Nm. This ultra-compact footprint not only drastically reduces installation space but also minimizes complex external wiring, fundamentally mitigating electromagnetic interference (EMI).
•Next-Generation Communication: Supporting 5 Mbps CAN FD Fully compatible with the CAN FD high-speed communication protocol supporting a maximum baud rate of 5 Mbps. This allows for high-speed, online read/write parameters via the CAN bus while feeding back critical telemetry data—such as motor speed, position, torque, and motor temperature—to the main controller with minimal latency, satisfying demanding high-frequency closed-loop control requirements.
•Advanced Control Algorithms: Force/Position Hybrid Control Support Beyond conventional MIT, speed, and position modes, this system deeply integrates an advanced Force/Position Hybrid Control Mode. This enables the motor to achieve exceptional compliance control (flexible force control) in robotic joint applications, perfectly replicating the organic fluid motion of human joints.
•Dual Temperature Protection: Industrial-Grade Multi-Layer Safety Guard Featuring a unique dual-layer thermal protection mechanism that simultaneously monitors the driver board (120°C threshold) and the motor coils (recommended limit of 100°C), automatically exiting "Enable Mode" to prevent coil burnouts. Additionally, the system integrates over-voltage protection (up to 65V), under-voltage protection (no lower than 20V), over-current protection, and communication-loss protection to ensure high reliability in harsh industrial environments.
•Visual Debugging & Convenient CAN Bus Upgrades Fully compatible with upper computer visual debugging software, making parameter tuning and waveform observation clear and intuitive, which drastically shortens the R&D and commissioning cycle. The system supports firmware upgrades via the CAN bus, allowing for online OTA updates without dismantling the hardware—keeping your actuators updated with the latest algorithms and peak performance.

Target Applications

•Humanoid Robots & Exoskeletons: Ideal for high-stress dynamic joints (e.g., hips, knees) requiring massive starting torque and hybrid force-position control.
•Collaborative Robots (Cobots) & Robotic Arms: Meets the demanding requirements for integrated, lightweight actuators with highly accurate trajectory tracking.
•Smart Logistics (AGV/AMR): Serves as a heavy-duty wheel-drive actuator, delivering smooth, high-torque output with built-in power-loss position safety.
•High-Precision Multi-Axis Motion Platforms: Leverages high-speed CAN FD communication to achieve seamless multi-axis synchronization and real-time monitoring under complex operating conditions.
